Mobile receive/transmit complex (MRTC)
PURPOSE of the COMPLEX
- reception of ERS data via High-Rate Radio Link (HRRL) channels from the ERS spacecraft (“Resurs-P”, “Kanopus-V”, “Meteor-M”, “Terra”, “Aqua”, “SPOT”, “Radarsat”, “NOAA”, “NPP”):
- in X-band (7.7–8.4 GHz) using two channels with a maximum data rate of up to 600 Mbit/s (up to 300 Mbit/s along each channel)
- in L-band (1.69–1.71 GHz ) with a data rate of up to 1.33 Mbit/s
- data exchange via “LUCH” Multi-purpose Space Relay System (MSRS) in Ku-band with a data rate of up to 70 Mbit/s
- demodulation, decoding, reconstruction of frame structure, registration of acquired science and housekeeping data
- automated generation and issuing requests for conducting surveys by the ERS spacecraft
- automated processing of data, obtained by ERS spacecraft
- output formats: TIFF, IMG, SHAPE, PDS, KDF, H5, RAW
- cataloging, archiving and storage of data
SYSTEM STRUCTURE

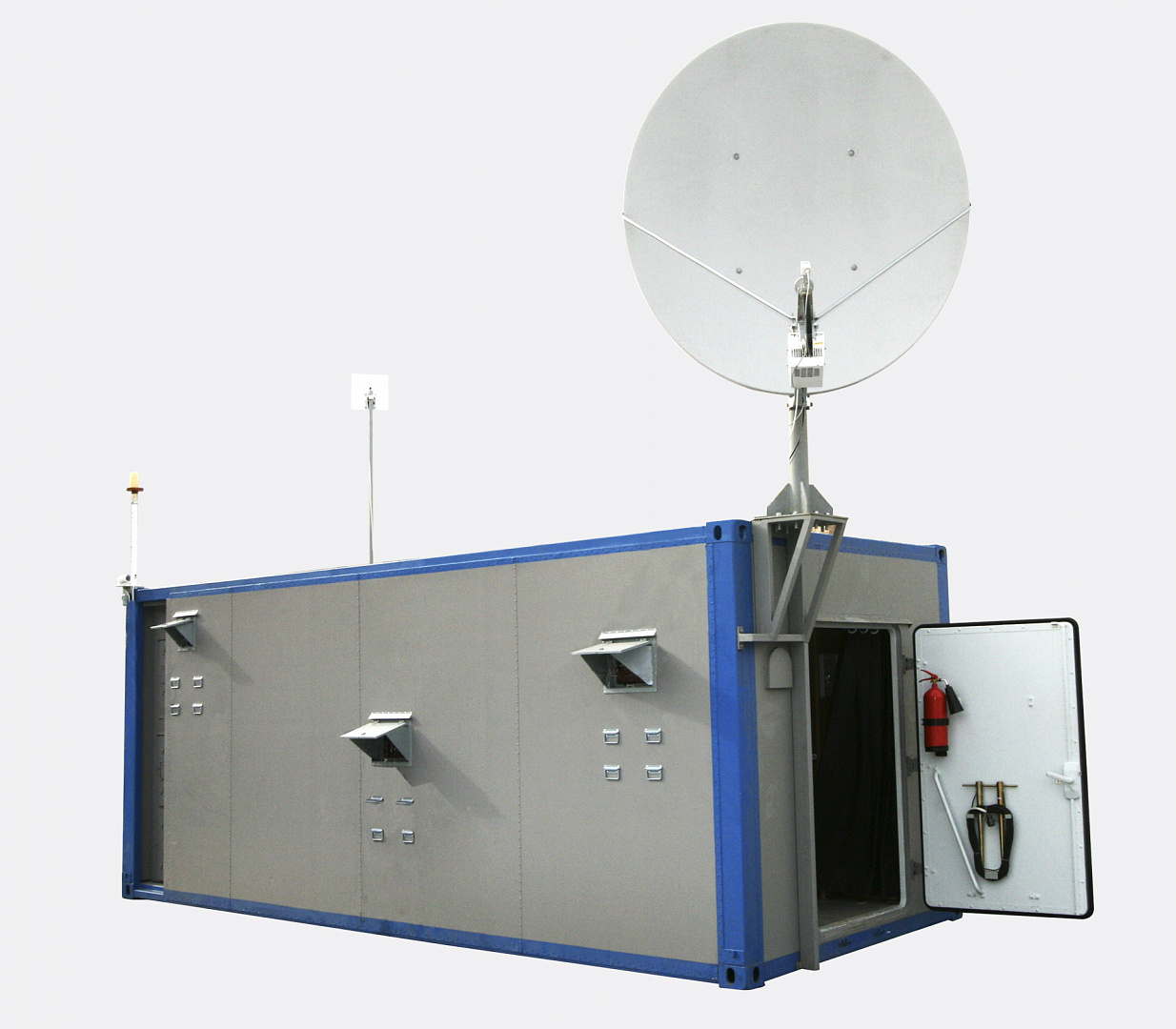

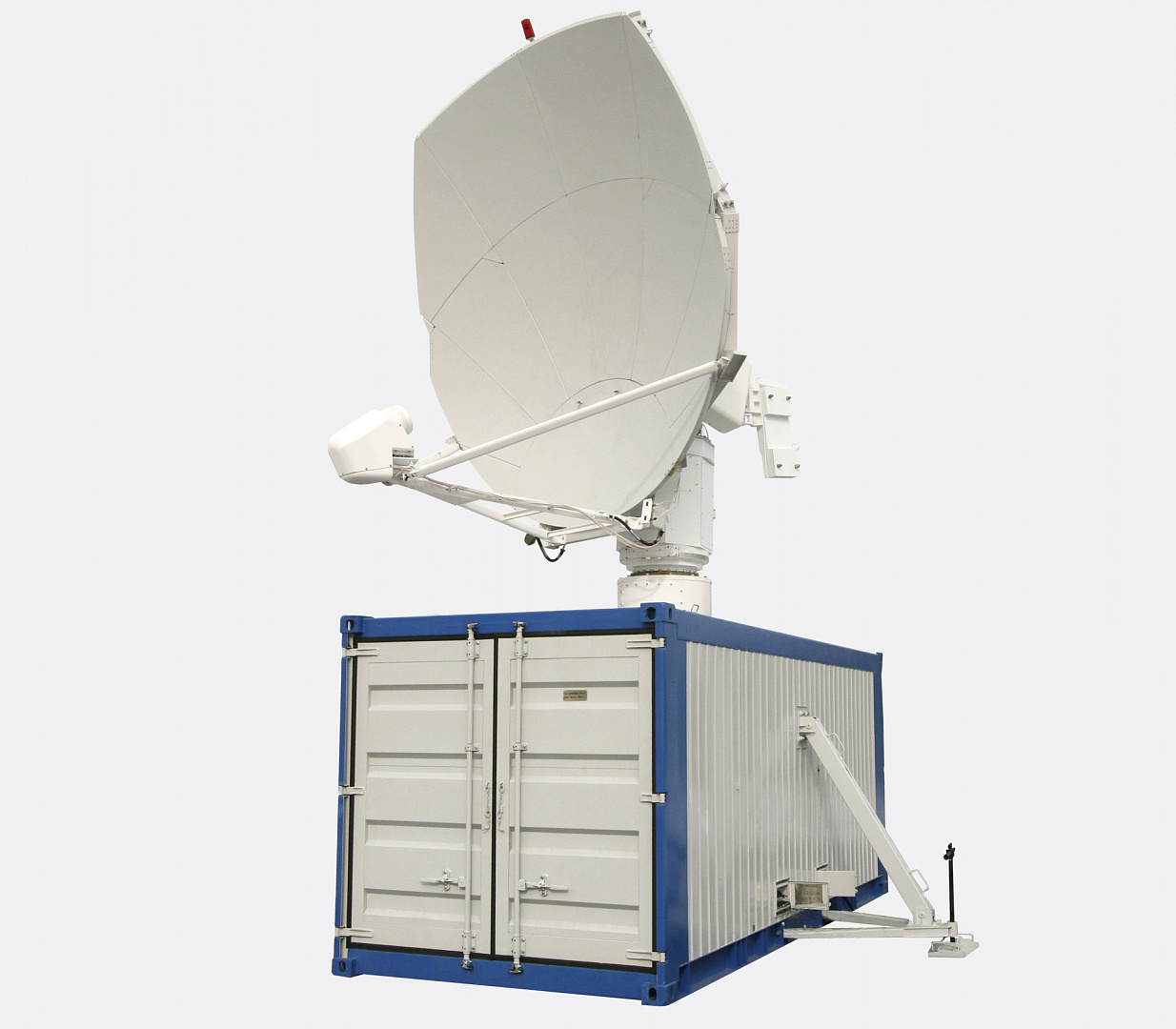

- antenna complex for reception and transmission

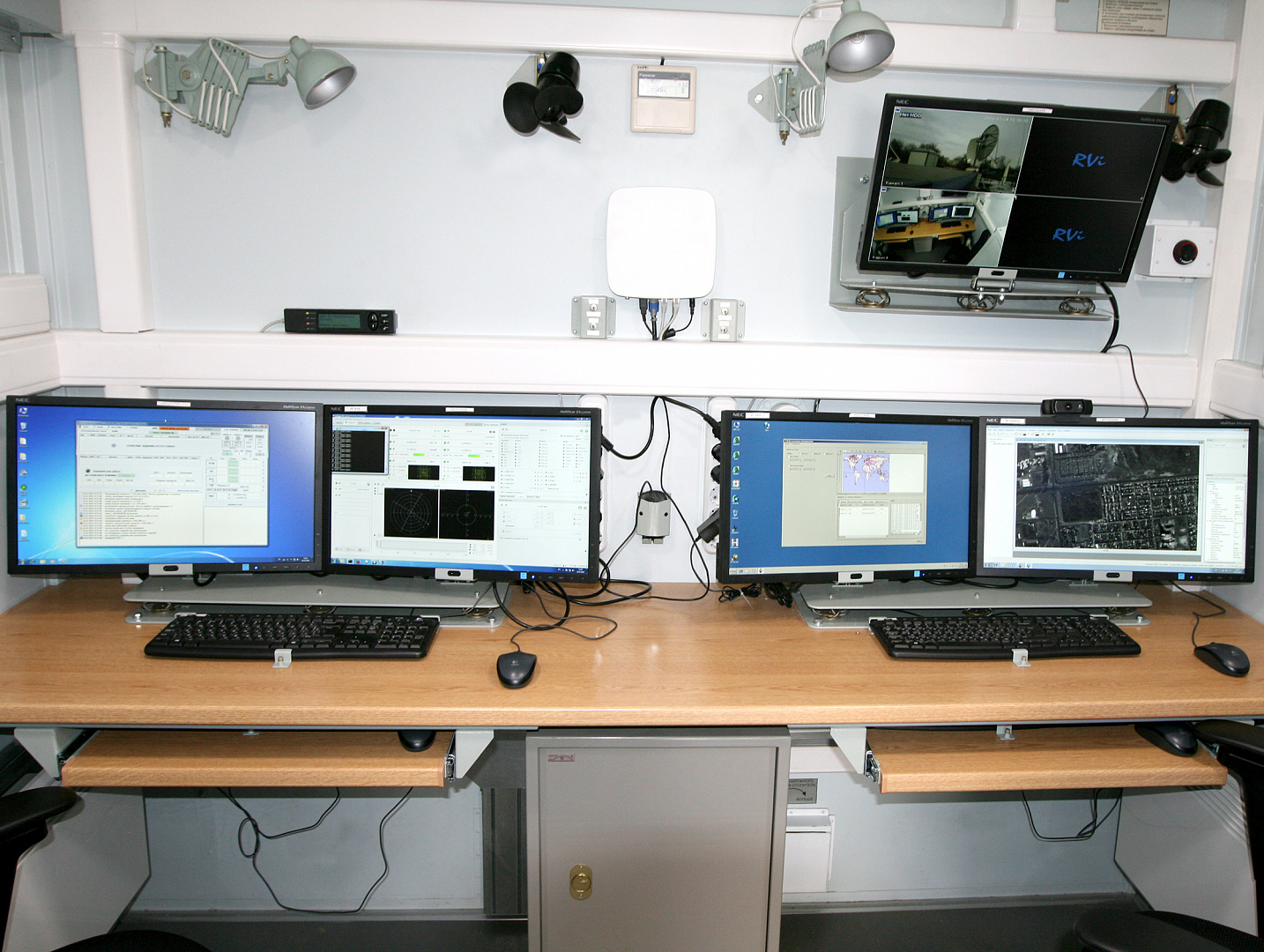

- data processing module
SPECIFICATIONS of the COMPLEX
Parameters
Reflector, D, m
3.7 offset
Pointing angle ranges, deg.:
in azimuth
± 270°
in elevation
0–180°
Receive frequency band, GHz
X-band
7.7–8.4
L-band
1.6–1.7
Type of received signal modulation
BPSK, QPSK, OQPSK, 8PSK, 16QAM, 16APSK
Gain factor, dB
X-band
46
L-band
30
Ku-band
48
OPERATING CONDITIONS
Air temperature, °С
from –40 tо +50
Wind velocity, m/s
up to 25
Power consumption, kW
no more than 15
